TARMAC GRINDING LTD

Services

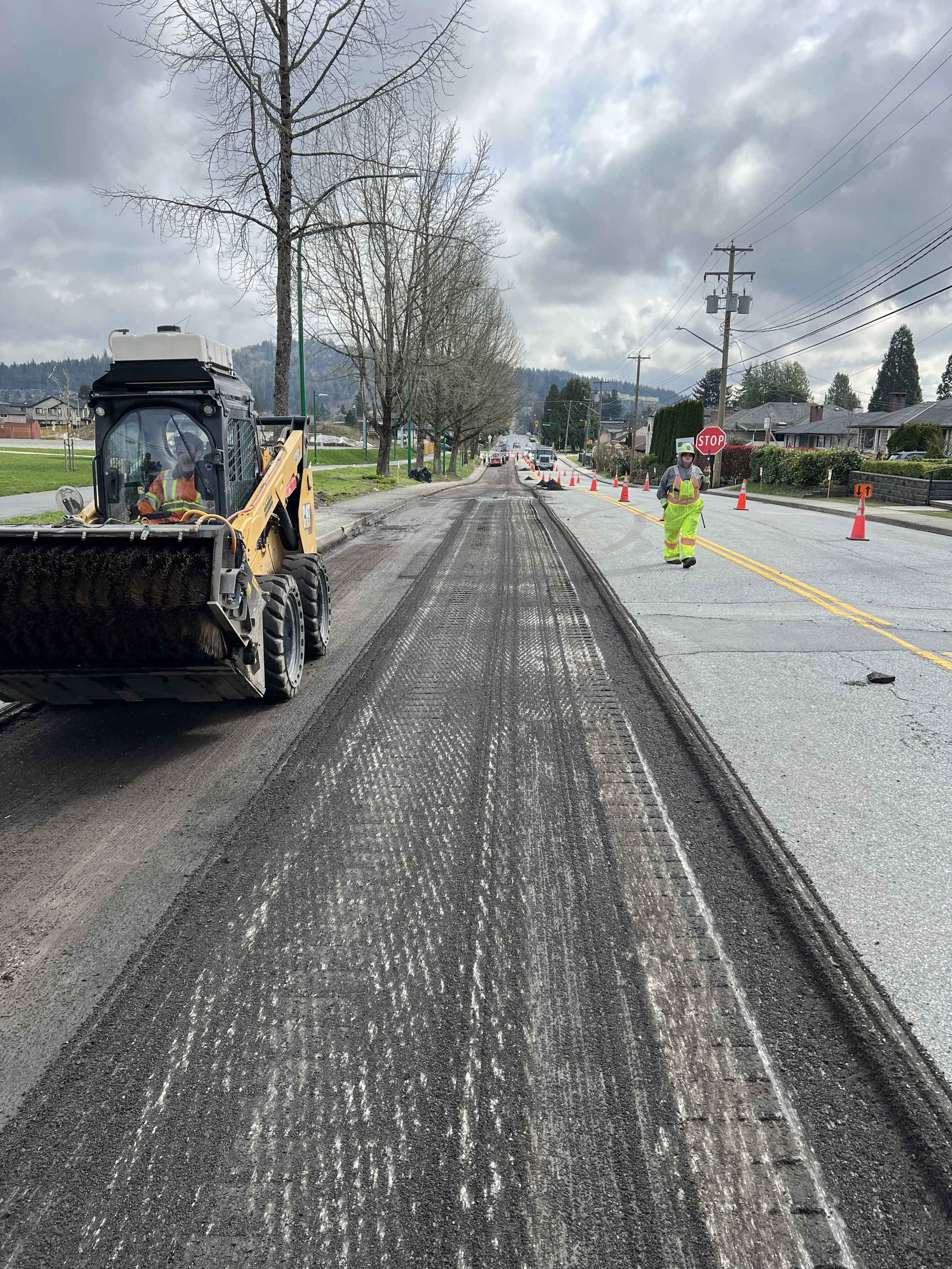

• Trench Grinds prior to pipe installation. Ideal for water mains, sewers; gas mains, etc...

• Profiling for butt-joints in existing asphalt.

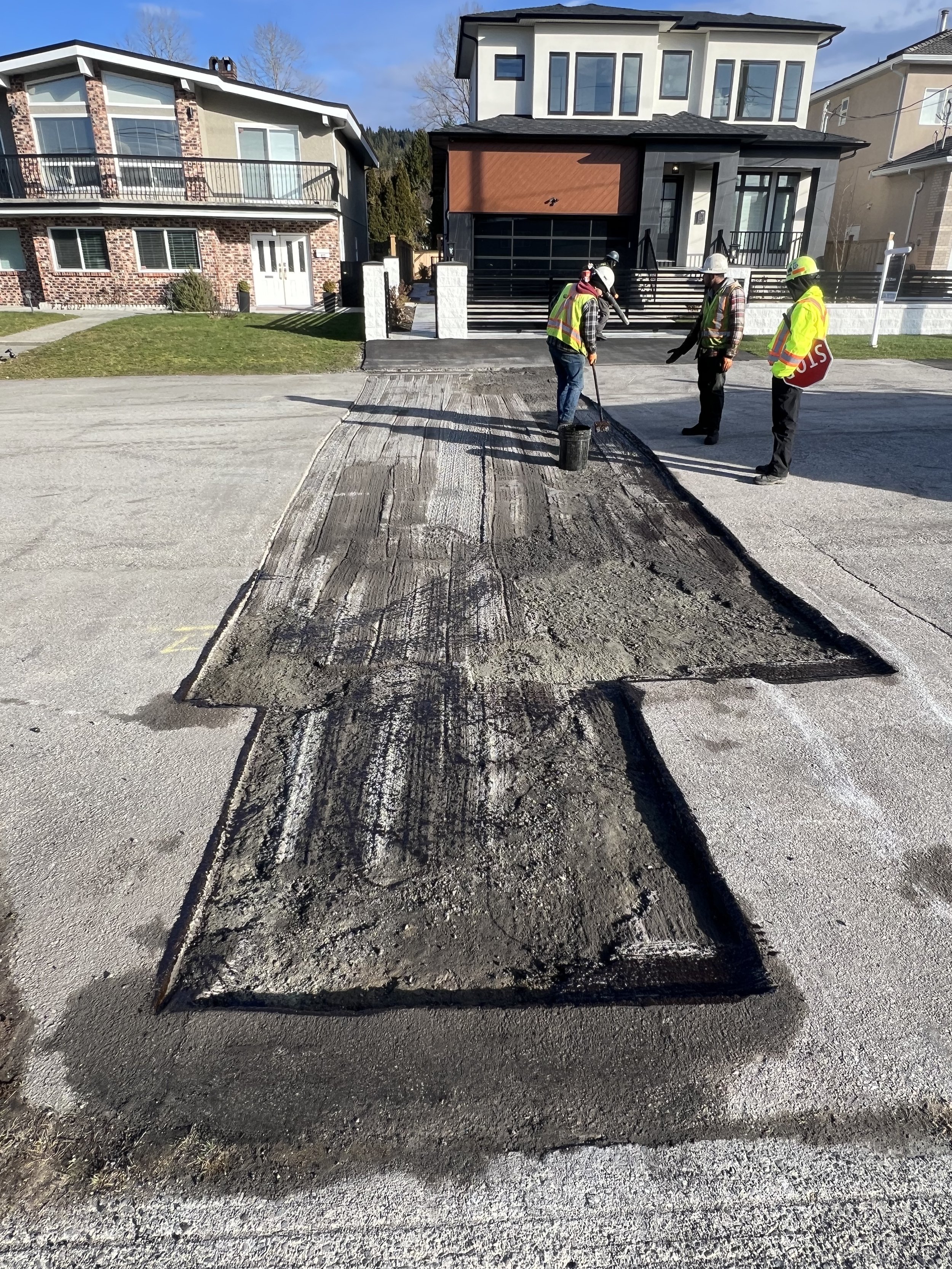

• Asphalt Patching.

• Total and Partial reclamation and removal.

• Power Sweeping and cleaning up.

• Grade Preparation.

Advantages

• One step process instead of cutting, excavating, hauling, and dumping.

• This program recycles asphalt that would normally be dumped into expensive landfills.

• Recycled asphalt is re-usable as approved back fill.

• Trucking of broken asphalt is eliminated. The asphalt can be stock piled on site for back fill later.

• No pipe laying delays. After we grind the trench, the grindings can be left in the trench as a temporary road patch and traffic can immediately drive over the trench.

• Our grinders are equipped with side bits that produce a feathered rough edge along the trench sides rather than a straight cold cut (from saw cutting). This allows for a superior base and final install of hot mix asphalt when the job is completed.

• Comparable or less costly than saw cutting... or much less costly after you factor in stripping, hauling, and dumping of asphalt chunks.

• Reduce your restoration costs and excavation costs with a narrow trench.

• Our profiling machines also allow us to prepare existing asphalt for overlays and patching.

Companies who have utilized our services:

AC Paving

B & B Contracting

B.C. Ministry of Transp.

Baxter Curbing & Concrete

Beaverdale Const. Ltd.

Bel Contracting

Bird Construction Company

Bray Enterprises Ltd.

Capilano Hwys

Central Valley Excavating

Chet

City of Abbotsford

City of Richmond

Coastal Mountain Excavating

Columbia Bitulithic

Con-West Contracting Ltd.

Corporation of Delta

City of Langley

DSM Excavating

FTG

Gemco Construction Ltd.

Grandview Blacktop

Hexcell Construction Ltd.

Imperial Paving

J. Cote & Son Excavating Ltd.

Jack Cewe Ltd.

Jake’s Contracting

Jeff J. Verhiel Contractors

John Floris

Lafarge Construction

Marten’s Asphalt

Matcon Civil Constructors Ltd.

Municipality of Langley

Palmierri Bros

PCL

Pioneer Paving

Ponte Bros

Progressive Contracting

S&S Asphalt

Sandpiper Contracting Ltd.

Save On Asphalt

South West Contracting

Tag Construction

Tyam Construction Ltd.

Western Star Contracting

Westpro Constructors Gp Ltd.

White Rock Utilities Ltd.

Win Van Paving

Our Fleet

High-Flow Skid Steer Loaders

450mm profiler head: can grind to a depth of 100mm, ideal for small butt joints against manholes & around valves.

• 50mm profiler head: ideal for keying in concrete curbs in parking lots.

• 1.5 and 1.82 meter wide sweeper attachments; usually works behind profiler cleaning up ground asphalt finds. Swept material can be dumped right into dump trucks from sweeper bucket or stockpiled on site.

• 1.82 meter wide cleanup bucket for grading & loading.

• Our loaders are equiped with a water system to eliminate dust and smoke caused by grinding.

Reclaimers

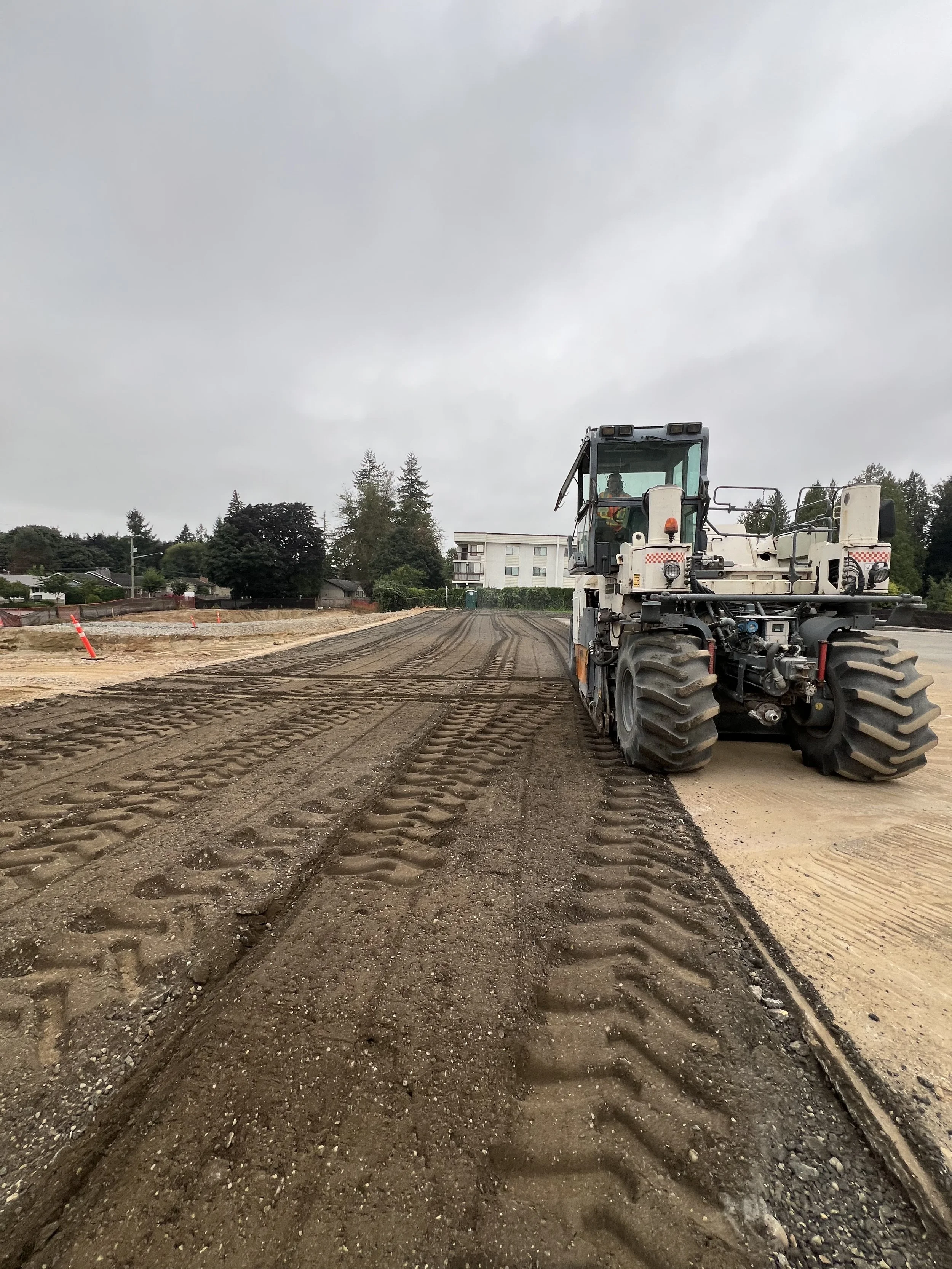

This 28,000 kg self-propelled machine is best suited for full-depth asphalt reclamation and for mixing loose material.

• The RS-650 offers the power and performance to make high production work of even the most difficult cutting and mixing assignments.


• The machine's standard 2.4 m wide drum is fitted with conical teeth for reclamation and stabilization and offers variable cutting depths up to 16 inches.

Wirtgen 120cfi Profilers

This 20,000 kg self-propelled machine can perform full depth removal or profiling.

• Prepares existing asphalt for overlays with programmable grade controls for both sides of drum during cut.

• Ideal for butt joints/step mill before overlay; curb reveals before overlay; MMS for permanent patch on trench lines.

• Can cut up to 33 cm deep x 1.2 m wide on a single pass or make multiple passes for greater widths.

 Wirtgen 210i Profilers

This 36,040 kg self-propelled machine can perform full depth removal or profiling.


• With its innovative extraction technology, the vacuum cutting system ensures perfect visibility of the milling edge during the day and at night.


• Prepares existing asphalt for overlays with programmable grade controls for both sides of drum during cut.




• Ideal for butt joints/step mill before overlay; curb reveals before overlay; MMS for permanent patch on trench lines.




• Can cut up to 31 cm deep x 2.2 m wide on a single pass or make multiple passes for greater widths.
